Description

Specifications

Items	Value
Brand	Ax-pro
Encoder type	Incremental encoder
External diameter	48mm
Thickness	34mm

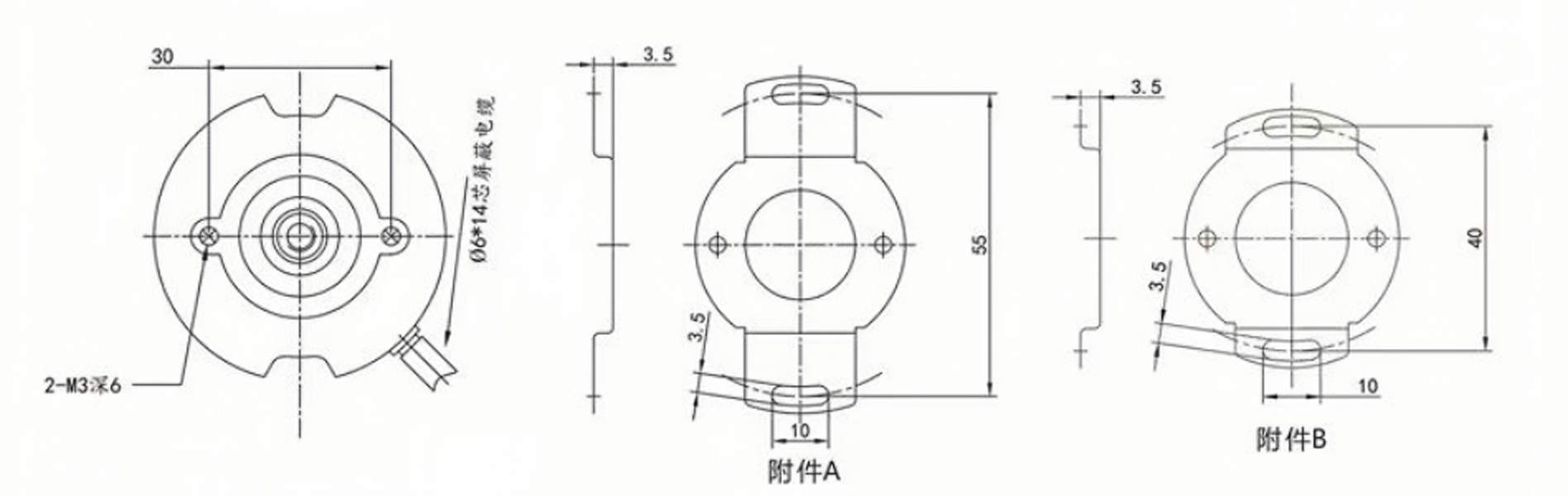

Installation dimension	40mm, 55mm
Hollow shaft type	through straight hole, taper shaft
Hollow shaft diameter	8mm for through straight hole ; 9mm for taper shaft
Resolution	1000, 2500, 5000
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V
Output mode	Line drive TTL phase ABZ are back of phase UVW
Protection grade	IP40
Cable length	170mm
Consumption current	100mA MAX
Top response frenquency	480KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC5V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
Mark to Space ratio	45% to 55%
Shaft load	Radial 20N; Axial 10N
Slew speed	6000RPM
Environmental temperature	Operating:-20 ～+80°, storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Shock tolerance	490m/s2 ,11 ms three times for X,Y,Z direction individually
