Value
|
|
|
Ax-pro
|
|
|
Incremental encoder
|
|
|

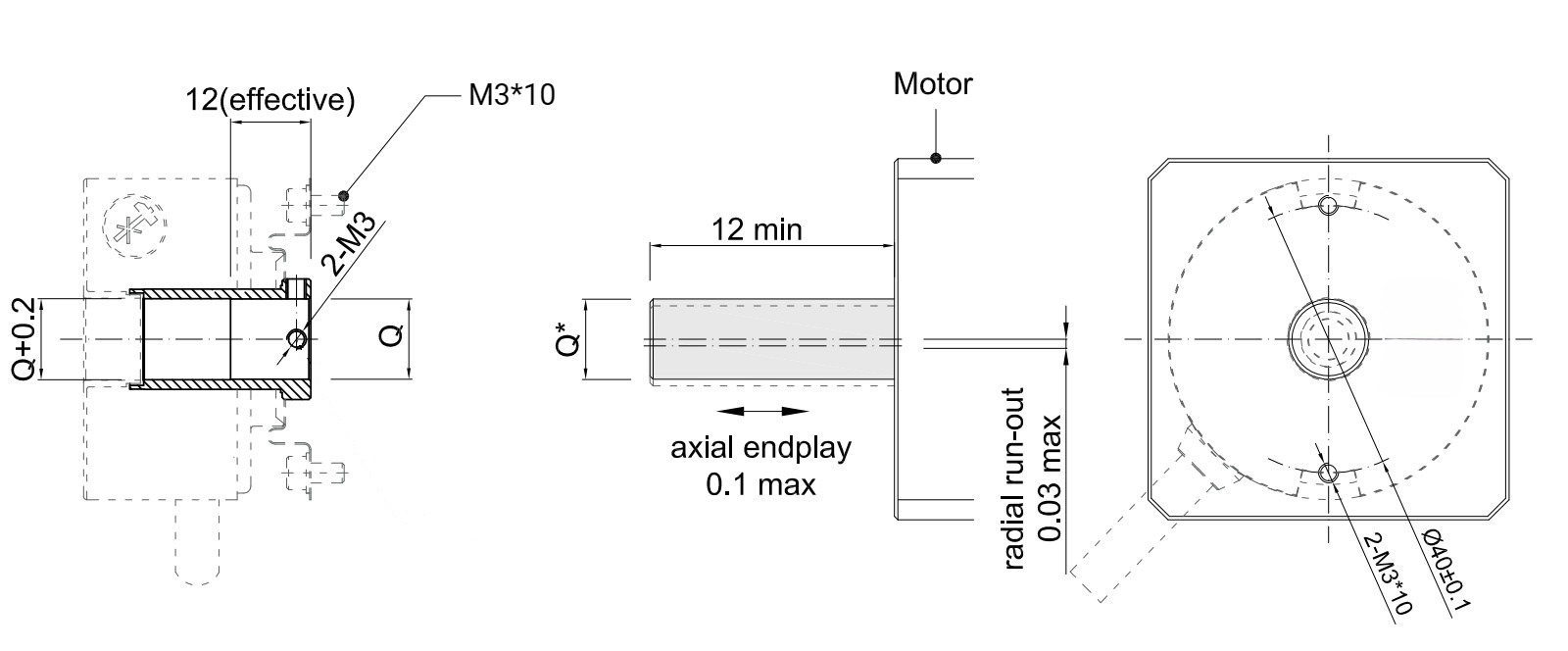

48mm
|
|
|
34mm
|
|
|
40mm
|
|
|
through straight hole
|
|
|
6mm;8mm;9mm;9.52mm;10mm
|
|
|
50, 60, 100, 200, 250, 256, 300, 360, 400, 450, 500, 512, 600, 1000, 1024, 1200, 2000, 2048, 2500, 4096, 5000, 8192, 10000
|
|
1000/4, 1000/6, 1000/8, 1024/4, 1024/6, 1024/8, 2000/4, 2000/6, 2000/8, 2048/4, 2048/6, 2048/8, 2500/4, 2500/6, 2500/8, 4096/4, 4096/6, 4096/8, 5000/4, 5000/6, 5000/8, 8192/4, 8192/6, 8192/8
|
|
|
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
|
|
|
DC5V ; DC8--30V
|
|
|
NPN/PNP(Open Collector Output),Voltage output, Push-pull output,line drive (26LS31) TTL,line drive(DC8-30V) HTL,TTL(DC5V) phase
ABZ are back of phase UVW
|
|
|
IP40
|
|
|
500mm
|
|
|
100mA MAX
|
|
|
300KHZ
|
|
|
≤3%rms
|
|
|
≤DC30V
|
|
|
AC500V 60s
|
|
|
10MΩ
|
|
|
45% to 55%
|
|
|
less than 9.8x 10-3 N.m
|
|
|
less than 6.5x 10-6kg.m2
|
|
|
Radial 50N; Axial 30N
|
|
|
5000RPM
|
|
|
1.5x109 revs at rated load(100000hrs at 2500RPM)
|
Environmental temperature
|
Operating:-20 ～+80°, storage:-25 ～+90°
|
|
|
Operating and storage: 35-85%RH(noncondensing)
|
|
|
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
|
|
|
490m/s2 ,11 ms three times for X,Y,Z direction individually
|
